High Stability Of Off-grid Voltage And Frequency 120kW PCS 241kWh Battery High-Efficiency Air-Cooled Battery Generator

120kW PCS 241kWh Battery High-Efficiency Air-Cooled Battery Generator Specification

Product Overview

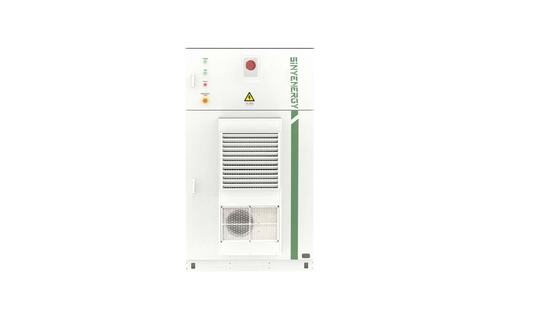

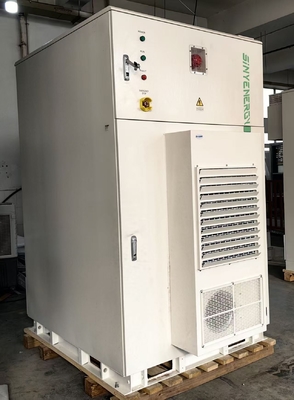

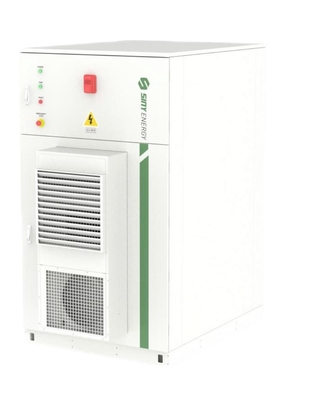

This 120k W P CS 241kW h Battery High-Efficiency Air-Cooled Battery Generators are outdoor cabinet-style integrated energy storage systems composed of integrated power control systems and high-energy-density lithium battery systems.

Integrated Power Control System includes:

• Modular P C S (Power Conversion System)
• Grid-connected/Islanding switching system
• A C/ D C pow er distribution system
• Local monitoring system
• Clou d-based control system ( Only within China)

Lithium Battery System consists of:

• Battery cluster
• Battery Manageent System (B M S)
• Environmental control system
• Fire protection system

The P C S adopts the company’s standardized 125kW mod ule, which can be flexibly configured with battery cells of varying capacities to form products of different specifications. Each battery cabinet contains one battery cluster, with each cluster comprising a 1P 240S configuration (240 cells in series per string) using 314 Ah cells, delivering a maximum rated capacity of 241kWh. The cabinet integrates an STS (Static Transfer S witch) grid-connected/islanding switching device, enabling seamless transition between grid-tied and off-grid modes. Multiple units can be connected in parallel to form medium- to large-scale energy storage systems, offering advantages such as:

• Flexible deployment
• Easy installation
• Simplified maintenance
• Compatibility with user-side (behind-the- meter) and generation-side (front-of- meter) energy storage applications

Product Characteristics

• Fully enclosed design eliminates direct ventilation-induced component corrosion, providing optimal working conditions for electronic components.
• Separated compartment temperature control for battery cabin and P C S. The P C S adopts independent heat exchange technology, reducing system power consumption and enhancing operational efficiency.
• Dual-layer fire protection architecture (PACK-level and cabin-level) with triple-layer power supply protection, ensuring system safety and reliability.
• Utilizes 1P30S high-efficiency air-cooled modules (30 cells in series per mod ule), achieving 40% higher integration density compared to conventional market modules. This minimizes PACK-to-PACK harness connection points, reducing system losses and operational risks.
• Integrated with Siny Smart Cloud Platform for full lifecycle operation management and services, including energy settlement functionality ( Only within China).
• Multi-unit coordination with Siny's station-level EMS (Energy Management System) enables standardized comercial & industrial energy storage solutions.
• Built-in 200kW STS (Static Transfer Switch) achieves seamless grid-connected/islanding mode transition with switching time < 2 0 ms .

Product Advantages

• The energy storage system features high stability of off-grid voltage and frequency, with output voltage fluctuations not exceeding 1%.
• In off-grid mode, the output power energy storage system can automatically follow the load power size;
• The energy storage system features a 200% load shock resistance characteristic, capable of supporting up to 1.5 times overload for 5 consecutive seconds without voltage waveform distortion, and can operate continuously for 5 seconds under 2 times overload
• In off-grid mode, it can support energy feedback type loads to recharge the energy storage system;
• Modular energy storage design, convenient for transportation and hoisting, quick deployment, and plug-and-play.
• This battery generator can be connected in parallel with up to 10 single cabinets, enabling flexible allocation and combination for different customers and various power load scenarios.
• This solution is applicable to customers who originally used diesel generators as the voltage source and have the need to save costs and reduce noise. It is particularly suitable for power supply to motor-type equipment such as cranes, hoists, winches and mixers on construction sites, thereby achieving energy conservation, environmental protection and zero carbon emissions. Meanwhile, this battery generator can take advantage of the peak-valley difference of the power grid to reduce operating costs and improve economic benefits (charging at night and discharging during the day).

Product specification

Type class JUP-125K-241-C DC side Voltage range DC696V～DC864V Charge management Constant power, constant current Nominal current 157A Number of DC channels 1 AC grid connec tion Type of connection 3L+PE+N Nominal power 125kW Nominal voltage AC380V/400V/415V Nominal current 189A/180A/173A Voltage range -15%～+10% Nominal frequency 50Hz/60Hz Frequency range Nominal frequency±3Hz Power factor -1~+1 THDi ≤3% Ac off-grid Type of connection 3L+PE+N Nominal power 120kW Nominal voltage AC380V/400V Nominal frequency 50Hz/60Hz Nominal current 182A/174A THDU ≤3%

Voltage accuracy 1% Frequency accuracy 0.2Hz Frequency range Nominal frequency±0.2Hz Overload capacity 110%Load≥10min,120%Load≥1min Grid-connect ed/Islanding S witching Switching time ＜20ms Nominal power 200kW Battery parame ter Single cluster battery config uration 1P240S Total battery capacity 241kWh Environment Operating temperature -25℃～55℃(Derating above 40°C) Number of air conditioners 5kW@L35/L35 Rated cooling capacity of ai r conditioner 1850W/3000W Dehumidification Active dehumidification function Relative humidity 0% to 95% RH, non-condensing Communication Communication interface RS485,LAN Communication protocol ModBus TCP,ModBus RTU Installation mode Rack type Fire fighting reagent Aerosols System efficiency ＞86%(@25±3℃ ,0.5C

EMC Class A Isolation mode non-isolated Class of protection IP55 Cooling mode Air Conditioning Cooling (Battery cluster) + Heat Exchanger Cooling (PCS) Dimension(W*H*D) 1300*1600*2300mm(Excluding air conditioning an d heat exchanger) Weight(kg) 3400
