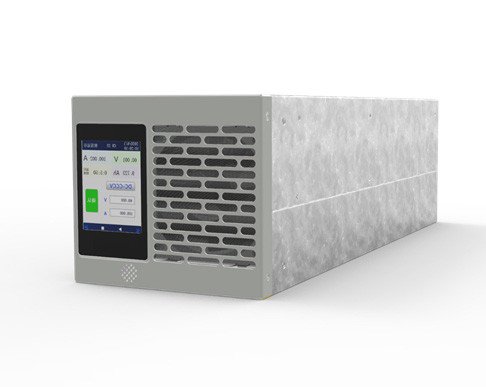

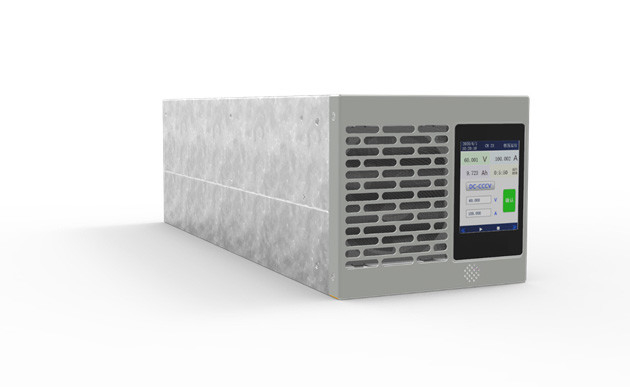

10Vdc To 450Vdc AC DC Converter 6000W For Lithium Battery Testing Equipment

10Vdc To 450Vdc AC DC Converter 6000W For Lithium Battery Testing Equipment
10Vdc To 450Vdc AC DC Converter 6000W For Lithium Battery Testing Equipment 10Vdc To 450Vdc AC DC Converter 6000W For Lithium Battery Testing Equipment

Large Image :  10Vdc To 450Vdc AC DC Converter 6000W For Lithium Battery Testing Equipment

Product Details:
Place of Origin: China
Brand Name: ANE
Model Number: PMA006-A011-MI
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: FOB: 1,000 USD~3,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month
Detailed Product Description
Isolation Transformer: Support AC And DC Starting Capability: Support
Forward And Reverse Switching Time: <100ms Efficiency: ≥94%
Overload Capability: 1.1 Times ≥ 10min, 1.2 Times ≥ 1min Standby Power Consumption: <30W
Mean Time Between Failure (MTBF): >100000 Hours Operating Temperature: -25℃~+55℃(above +50℃ Power Derating)
Working Humidity: ≤95%RH,no Condensation Storage Temperature: -40℃~+70℃
Cooling Method: Intelligent Forced Air Cooling Altitude: <3000m
Communication: RS485,CAN Reactive Power Compensation: Support
Protection Level: IP20 Noise: <70dB
Weight: 7.5kg Size (W*D*H) 430mm*500mm*130mm: 129*143*415mm
High Light:

10Vdc To 450Vdc AC DC Converter


AC DC Converter 6000W


6000W ac to dc power supply module

DPS(6kW) High Frequency Isolated AC DC Bidirectional Converter Module For Lithium Battery Testing Equipment

Using the latest optimized hardware design, advanced control algorithm and advanced manufacturing process, the HF isolated bidirectional power supply is specially developed for lithium battery testing equipment, AC and DC analog power supply, feedback electronic load, EV charging and discharging equipment and energy storage equipment. Intelligent forward and backward operation, seamless switching, can meet the occasion of two-way energy transformation, and has high frequency isolation function, higher security. At the same time, the product is equipped with on-grid/off-grid switching function, and the switching time is not more than 10ms, which can be applied in more occasions.



  • Intelligent grid-connected operation, bidirectional high power factor, bidirectional low harmonic current, can effectively improve the quality of the power grid;
  • With intelligent reactive power compensation and harmonic compensation;
  • With off- grid/grid-connected switching function, the switching time shall not exceed 10ms;
  • With islanding protection (settable), intelligent forward and backward operation to improve system reliability;
  • With multiple modes of constant voltage, constant current, constant resistance and constant power;
  • Support series and parallel capacity expansion, extend the DC side voltage to DC 1200v, cascade form three-phase system, can be applied to more occasions;
  • The latest charging and discharging test technology will not cause interference to the BMS management system, which is suitable for daily discharging, charging and multiple cycles of lithium battery;
  • Voltage, current, power, etc. can be set, wide output voltage range, to meet the charging and discharging requirements of most lithium battery packs and energy storage equipment;
  • The intelligent DSP design realizes the full digital control of the energy storage converter module and determines the high reliability of the control;
  • Multiple safety protection, input over and under voltage protection, output anti-reverse connection protection, short circuit protection,over temperature protection, air duct abnormality detection, etc.

Technical parameter

AC side parameters

  • Rated Input Power
wiring Single-phase three wire system
voltage range 220Vac±15%
Rated frequency and range45~65Hz(Adaptive 50/60Hz power grid)
Power factor adjustment range±1

DC side parameters

  • Rated voltage
  • Rated current
Voltage range 10Vdc-450Vdc
Current range ±60A
Voltage accuracy0.1% F.S
  • Current accuracy
0.1% F.S
Voltage limitingYes
  • Current limiting

Basic Characteristics

AC/DC starting functionYes
Switching time forward and backward≤10ms
  • Peak efficiency
  • Weight(kg)

Environmental Conditions

  • Operating Temperature Range
  • Working humidity range
%RH<+95Relative humidity, non-condensing
Storage temperature°C-40 ~ +55
  • Storage humidity
%RH0 ~ +95Relative humidity, non-condensing
  • Cooling mode
  • Force-air cooling
  • Altitude
  • Protection grade
  • Noise


Communication mode-
  • CAN,RS485,Ethernet,dry contact
Report signal-Various protection signals, voltage and current signals
Receipt signal-On off signal
