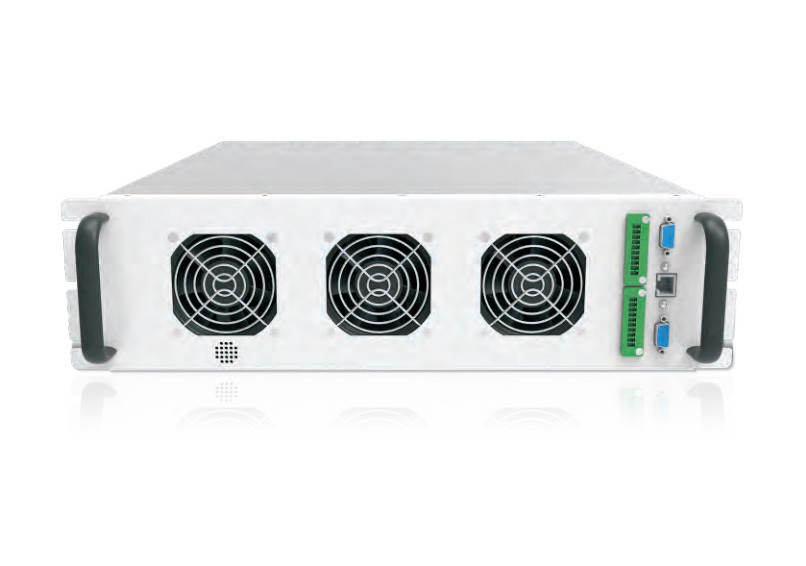

50KW AC To DC Converter Module 380V Intelligent Micro Grid Operation

50KW AC To DC Converter Module 380V Intelligent Micro Grid Operation
50KW AC To DC Converter Module 380V Intelligent Micro Grid Operation

Large Image :  50KW AC To DC Converter Module 380V Intelligent Micro Grid Operation

Product Details:
Place of Origin: China
Brand Name: ANE
Model Number: TIB3850M100NK
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: FOB: 1,000 USD~10,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 2000 Per month
Detailed Product Description
AC Side Grid Connection Parameters: AC Side Grid Connection Parameters Rated Voltage: AC380V
Rated Power: 50kW Maximum Power: 55kW
Voltage Range: AC380V±15% Current Range: ±73A
Rated Frequency: 50Hz Frequency Range: 50Hz±5Hz/60Hz±5Hz
Power Factor Adjustable Range: -0.99~0.99 Current DC Component: ≤0.5%
Harmonic Content THDi: ≤5% AC Side Off-grid Parameters: AC Side Off-grid Parameters
Stabilized Voltage Precision: ≤1% Voltage Settable Range: AC380V±15%
Power Factor: >0.99 Harmonic Content THDu: ≤3%
Dynamic Response: ≤60ms Output Voltage DC Component: ≤0.5%
Voltage Transition Range: ≤5%,Load Changed From 20% To 100% Unbalanced Load Capacity: 100%
Three-phase Unbalance: ≤2%,Short Time No More Than 4% DC Side Parameter: DC Side Parameter
Voltage Range: DC730V~DC1050V Voltage Error: ≤1%
Current Error: ≤1% Stabilized Current Precision: ≤1%
Voltage Limiting: Support Current Limiting: Support
AC And DC Starting Capability: Support Forward And Reverse Switching Time: <100ms
Efficiency: ≥98.3% Overload Capability: 1.1 Times ≥ 10min, 1.2 Times ≥ 1min
Standby Power Consumption: <30W Mean Time Between Failure (MTBF): >100000 Hours
Operating Temperature: -25℃~+55℃(above +50℃ Power Derating) Working Humidity: ≤95%RH,no Condensation
Storage Temperature: -40℃~+70℃ Cooling Method: Intelligent Forced Air Cooling
Altitude: <2000m Communication: RS485,CAN
Reactive Power Compensation: Support Protection Level: IP20
Noise: <75dB Weight: 23.5kg
Size (W*D*H) 430mm*500mm*130mm: 430mm*500mm*130mm
High Light:

50KW AC To DC Converter Module


AC To DC Converter Module 380V


high voltage power converter 380V

50 KW AC DC Bidirectional Converter Module For Micro-Grid System / Energy Storage System

ANE 50kw energy storage converter module adopts modular design, with off-grid, grid-connected and rectifier modes, and can be intelligently switched between the three modes, and has reactive power compensation and harmonic compensation. The advanced control algorithm is used to realize parallel connection of multiple machines, and the power level of the parallel system covers 50kW-1000kW. The module adopts the new generation DSP digital control, with excellent load adaptability and power grid adaptability. Meanwhile, the independent air duct design enables the module to effectively cope with various complex application environments, making the system operation safer, more reliable and economic, and stronger environmental adaptability.



  • Intelligent grid-connected operation with low harmonic content;
  • With intelligent reactive power compensation and harmonic compensation functions, effectively improve the quality of power grid;
  • With islanding protection and low voltage ride through (settable);
  • Intelligent forward and backward operation to improve system reliability;
  • The intelligent DSP design realizes the full digital control of the energy storage converter module and determines the high reliability of the control;
  • Multiple safety protection, AC and DC overvoltage, undervoltage protection, short circuit protection, over temperature protection, fan abnormality detection;
  • Efficiency up to 98.3%, greatly reducing the loss of the machine, energy saving and environmental protection, reliable and durable;
  • Advanced active power factor correction technology is used to reduce harmonic interference to the power grid, which is superior to industrial application standards;
  • With half - wave load capacity, three - phase with 100% unbalanced load, good load adaptability;
  • The module's external communication includes CAN, 485 and dry contacts, which seamlessly connect with external systems;
  • The module possesses multiple sampling interfaces externally, which can be coordinated with customer system or using the optional off-grid/on-grid switching module to realize the off-grid, grid-connected switching function;
  • The virtual synchronous motor control mode can be implemented by setting.


Technical Parameter

Model TIB3850M100NK
AC side grid connection parameters
Rated voltage AC380V
Rated power 50kW
Maximum power 55kW
Voltage range AC380V±15%
Current range ±76A
Rated frequency 50Hz/60Hz
Frequency Range 50Hz±5Hz/60Hz±5Hz
Power factor adjustable range -0.99~0.99
Current DC component ≤0.5%
Harmonic content THDi ≤5%
AC side off-grid parameters
Rated voltage AC380V
Rated frequency 50Hz
Stabilized voltage precision ≤1%
Voltage settable range AC380V±15%
Power factor >0.99
Harmonic content THDu ≤3%
Dynamic Response ≤60ms
Output voltage DC component ≤0.5%
Voltage transition range ≤5%,Load changed from 20% to 100%
Unbalanced load capacity 100%
Three-phase unbalance ≤2%,Short time no more than 4%
DC side parameter
voltage range DC730V~DC1050V
Current range ±73A
Voltage error ≤1%
Stabilized voltage precision ≤1%
Current error ≤1%
Stabilized current precision ≤1%
Voltage limiting Support
Current limiting Support
Rated power 50kW
Maximum power 55kW
Basic characteristics
AC and DC starting capability Support
Forward and reverse switching time <100ms
Efficiency ≥98.3%
Overload capability 1.1 times ≥ 10min, 1.2 times ≥ 1min
Standby power consumption <30W
Mean Time Between Failure (MTBF) >100000 hours
Operating temperature -25℃~+55℃(above +50℃ power derating)
Working humidity ≤95%RH,no condensation
storage temperature -40℃~+70℃
Storage humidity 0 ~ 95%RH
Cooling method Intelligent forced air cooling
Altitude 2000m
Communication RS485,CAN
Reactive power compensation Support
Protection level IP20
Noise <75dB
Weight 23.5kg
Size (W*D*H) 430mm*500mm*130mm
