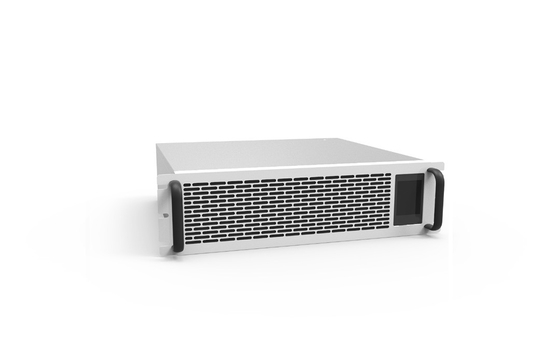

15KW AC DC Converter Module 380VAC 50~950VDC For Battery Test Equipment

15KW AC DC Converter Module 380VAC 50~950VDC For Battery Test Equipment
15KW AC DC Converter Module 380VAC 50~950VDC For Battery Test Equipment 15KW AC DC Converter Module 380VAC 50~950VDC For Battery Test Equipment

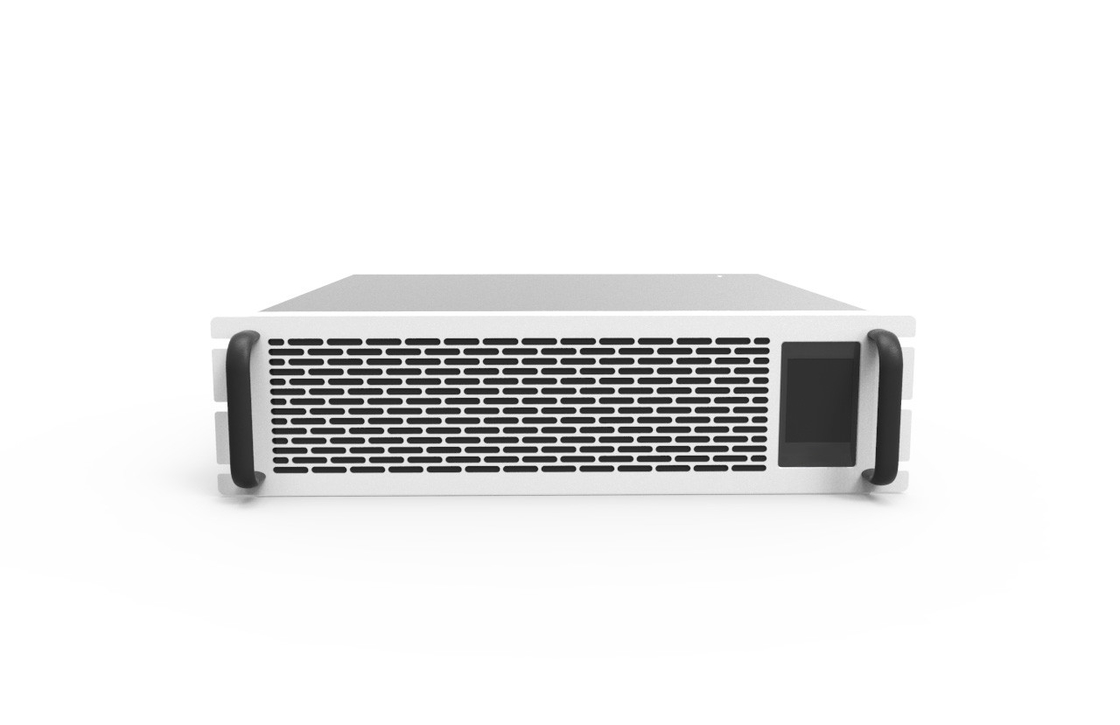

Large Image :  15KW AC DC Converter Module 380VAC 50~950VDC For Battery Test Equipment

Product Details:
Place of Origin: China
Brand Name: ANE
Model Number: PMA015-A011-HI
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: FOB: 1,000 USD~5,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month
Detailed Product Description
Isolation Transformer: Support AC And DC Starting Capability: Support
Forward And Reverse Switching Time: <10ms Efficiency: ≥93.5%
Overload Capability: 1.1 Times ≥ 10min, 1.2 Times ≥ 1min Mean Time Between Failure (MTBF): >100000 Hours
Operating Temperature: -20℃~+45℃(above +50℃ Power Derating) Working Humidity: ≤95%RH,no Condensation
Storage Temperature: -40℃~+55℃ Cooling Method: Intelligent Forced Air Cooling
Altitude: <3000m Communication: RS485,CAN, Ethernet, Dry Contact
Protection Level: IP20 Noise: <70dB
Size (W*D*H) 430mm*500mm*130mm: 436mm*420mm*85mm
High Light:

15KW AC DC Converter Module


AC DC Converter Module 380VAC


15KW AC To DC Converter

15 KW AC DC Bidirectional Power Module For Microgrid and Energy storage System.

ANE 15kW module is a bidirectional AC-DC module specially developed for battery test equipment and microgrid and energy storage system, AC-DC analog power supply, feedback electronic load, electric vehicle charge-discharge equipment and energy storage equipment, which adopts the latest optimized hardware design, advanced control algorithm and advanced manufacturing process. Compatible with almost all energy storage equipment charging and discharging requirements. This module has the advantages of ultra-wide constant power range, excellent low-voltage constant current capability, high weighted efficiency in full power range, large limit temperature working range, and minimal standby power consumption, etc. The system operation is safer, more reliable, more economical and more adaptable to the environment.



  • Intelligent grid-connected operation, bidirectional high power factor, bidirectional low harmonic current, can effectively improve the quality of the power grid;
  • Set bidirectional DC power supply and feedback electronic load function characteristics in one, intelligent forward and backward operation, power and load seamless switch;
  • With off- grid/grid-connected switching function. High dynamic response, full load switching time as low as 10ms;
  • With islanding protection (settable), intelligent forward and backward operation to improve system reliability;
  • With multiple modes of constant voltage, constant current, constant resistance and constant power;
  • With output programmable function, can simulate a variety of power supply and load characteristic curve;
  • Modular design, easy to expand capacity;
  • Wide output voltage range: 50Vdc ~ 950Vdc, high precision and fast dynamic response;
  • The intelligent DSP design realizes the full digital control of the energy storage converter module and determines the high reliability of the control;
  • Touch screen operation control, simple and intuitive;
  • Multiple safety protection, input over and under voltage protection, output anti-reverse connection protection, short circuit protection,over temperature protection, air duct abnormality detection, etc.

Technical parameter

AC side parameter

Model PMA015-A011-HI
Wiring TN-S
Rated Voltage 380Vac
Voltage range 380Vac±15%
frequency range 45~65Hz
PF 0.99
THDi ≤3%
Rated frequency and range 45~65Hz
THDi ≤3%
AC/DC starting function Support
Switching time forward and backward ≤10ms
Peak Efficiency ≥93.5%


DC side parameter

Model PMA015-A011-HI
Rated value 300Vdc/50A
 Rated power 15kW
Current range ±50A
Current accuracy 0.1% F.S/0.05% F.S
Voltage range 50~950Vdc
 Voltage accuracy 0.1% F.S/0.05% F.S


Environmental conditions

Operating temperature range °C -20℃~45℃

Working humidity range

%RH <+95 Relative humidity, non-condensing
Storage temperature °C -40 ~ +55
Storage Humidity %RH 0 ~ +95 Relative humidity, non-condensing
Cooling mode -

Air Cooling

Altitude m 3000 /
IP grade - IP20
Noise - ≤70dB

Communicating function

Communication mode - CAN,RS485,Ethernet,Dry Contact.
Report the signal - Various protection signals, voltage and current signals.
Receipt signal - On off signal.
