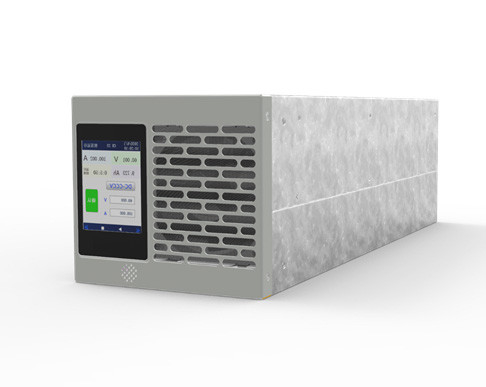

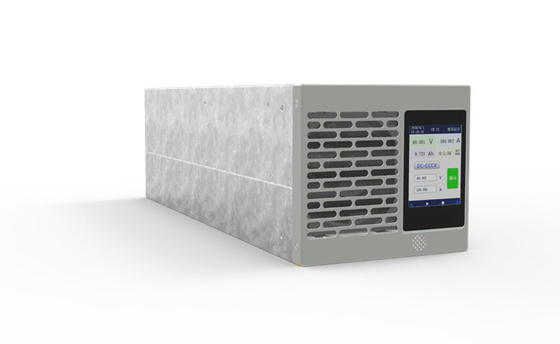

Isolated Bidirectional 6KW AC To DC Converter 2.5Vdc-100Vdc High Efficiency

Isolated Bidirectional 6KW AC To DC Converter 2.5Vdc-100Vdc High Efficiency
Isolated Bidirectional 6KW AC To DC Converter 2.5Vdc-100Vdc High Efficiency Isolated Bidirectional 6KW AC To DC Converter 2.5Vdc-100Vdc High Efficiency

Large Image :  Isolated Bidirectional 6KW AC To DC Converter 2.5Vdc-100Vdc High Efficiency

Product Details:
Place of Origin: China
Brand Name: ANE
Model Number: PMA006-A011-LI
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month
Detailed Product Description
Isolation Transformer: Support AC And DC Starting Capability: Support
Forward And Reverse Switching Time: <10ms Efficiency: ≥94%
Mean Time Between Failure (MTBF): >100000 Hours Operating Temperature: -25℃~+55℃(above +50℃ Power Derating)
Working Humidity: ≤95%RH,no Condensation Storage Temperature: -40℃~+70℃
Cooling Method: Intelligent Forced Air Cooling Altitude: <3000m
Communication: RS485,CAN, Ethernet Reactive Power Compensation: Support
Protection Level: IP20 Noise: <65dB
Weight: 10kg Size (W*D*H) 430mm*500mm*130mm: 215mm*400mm*130mm
High Light:

6KW AC To DC Isolated Converter

,

AC To DC Isolated Converter RS485

,

6KW Intelligent AC DC Converter

DPS 6kW High Frequency Isolated AC/DC Bidirectional Converter Module

Features

  • Two-way energy transfer, cross quadrant seamless switch;
  • High output voltage range, high precision, fast dynamic response;
  • High frequency isolation, higher safety;
  • Multiple safety protection, input over-voltage/under-voltage protection, output anti-reverse connection, short circuit protection, over-temperature protection, abnormal detection of wind duct, etc;
  • Modular design, easy maintenance, support parallel capacity expansion;
  • Wide temperature -20℃~45℃;
  • Equipped with on-grid/off-grid switching function;
  • Soft switch design, low loss, high efficiency;
  • DSP design, realize full digital control;
  • Both local operation and remote operation functions;
  • Rich external interface;
  • Strict system thermal design, low temperature rise, long life;
  • Touch screen operation control, simple and intuitive.

Technical parameter

AC side parameters

  PMA006-A011-LI

· Rated Input Power

6kW
wiring Single-phase three wire system
voltage range 220Vac±15%
Rated frequency and range 45~65Hz(Adaptive 50/60Hz power grid)
Power factor adjustment range ±1
THDi ≤5%


DC side parameters

  PMA006-A011-LI
· Rated voltage 60Vdc
· Rated current 100A
Voltage range 2.5Vdc-100Vdc
Current range ±100A
Voltage accuracy 0.1% F.S
· Current accuracy 0.1% F.S
Voltage limiting Yes
· Current limiting Yes


Basic Characteristics

  Description
AC/DC starting function Yes
Switching time forward and backward ≤10ms
· Peak efficiency 92%
H*W*D 129*143*415mm
· Weight(kg) 7.5kg


Environmental Conditions

· Operating Temperature Range °C -20℃~+45℃

· Working humidity range

%RH <+95 Relative humidity, non-condensing
Storage temperature °C -40 ~ +55
· Storage humidity %RH 0 ~ +95 Relative humidity, non-condensing
· Cooling mode - · Force-air cooling
· Altitude m 3000
· Protection grade - IP20
· Noise dB <70


Communication

Communication mode - · CAN,RS485,Ethernet,dry contact
Report signal - Various protection signals, voltage and current signals
Receipt signal - On off signal






Using the latest optimized hardware design, advanced control algorithm and advanced manufacturing process, the HF isolated bidirectional power supply is specially developed for lithium battery testing equipment, AC and DC analog power supply, feedback electronic load, EV charging and discharging equipment and energy storage equipment. Intelligent forward and backward operation, seamless switching, can meet the occasion of two-way energy transformation, and has high frequency isolation function, higher security. At the same time, the product is equipped with on-grid/off-grid switching function, and the switching time is not more than 10ms, which can be applied in more occasions.
