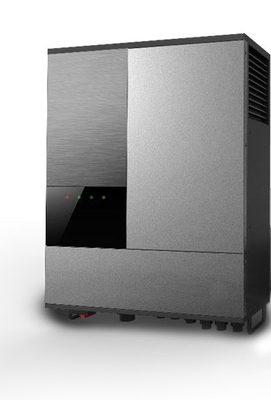

70kW High Power AC DC Converter Grid Connected Wall Mounted IP20 DC TO AC Converter

70kW High Power AC DC Converter Grid Connected Wall Mounted IP20 DC TO AC Converter
70kW High Power AC DC Converter Grid Connected Wall Mounted IP20 DC TO AC Converter

Large Image :  70kW High Power AC DC Converter Grid Connected Wall Mounted IP20 DC TO AC Converter

Product Details:
Place of Origin: CHINA
Brand Name: SINY
Certification: CE,G99
Model Number: MASI-70KW1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Exwork: 5,000~9,000 USD
Packaging Details: Carton
Delivery Time: 45 Work days
Payment Terms: T/T,
Supply Ability: 200 Per month
Detailed Product Description
Power: 70kW Efficiency: ≥98.2%
Standby Power Consumption: <120W Installation: Wall Mounting
Operating Temperature: -25℃ ~ +55℃(Power Derating Above +45℃) Protection Level: IP20
Size (W*H*D): 460*190*800mm Relative Humidity: 0~95%,No Condensation
Certification: G99/CE/CQC Communication Mode: RS485、CAN、LAN、REPO
Noise: <68dB Weight: 45kg
Display: Yes
High Light:

70kW High Power AC DC Converter


AC DC Converter Grid Connected IP20


IP20 DC TO AC Converter

70kW AC DC Bidirectional Converter Grid-connected Type for Micro Grid Energy Storage System

SINY ENERGY POWER MASI Series Energy Storage Converters can conveniently realize multi-equipment parallel networking to form small and medium-sized energy storage system, which has the characteristics of flexible layout, convenient installation and convenient maintenance, and is especially suitable for distributed energy storage application scenarios and general industrial and commercial customer applications.




  • Wiith its own monitoring system, touch screen can be external, can be convenient to build a small energy storage system.
  • DC voltage design:600V~900V
  • Adaptable to a variety of grid voltages: AC380V/400V/415V.
  • Three-level design,low harmonics.
  • Small volume, less occupied space and convenient installation.
  • Charge/discharge conversion less than 20ms.
  • Convenient multi-device parallel network: Multi-branch high-power energy storage system can be formed by multiple PCS in parallel.
  • The 3U standard rack design can be perfectly combined with the lithium battery cabinet to form a distributed energy storage cabinet.
  • High power density, small size, two people can carry the installation by hand.
  • Three level design, low harmonics, good power quality.
  • Perfect matching of power battery echelon utilization application scenarios

Product specification










DC side parametersVoltage rangeDC600V~DC900V
Rated power



Maximum current



Number of DC channels









AC grid-connection parametersGrid type



Rated power



Rated voltage



Rated current



Voltage range-15%~+15%
Rated frequency



Frequency rangeRated frequency±3Hz
Power factor



Output harmonic≤3%
EnvironmentWorking temperature-25℃~55℃(Derating when temperature is above 45 °C)
Storage temperature-40℃~70℃(No battery)
Relative humidity0%RH~95%RH,No condensation
Working altitudeWhen the temperature is 45 °C, derating is not required for 2000m. Derating ranges from 2000m to 4000m


Communications and Management

Communication interfaceRS485,CAN,LAN
Communication protocolCAN,ModBus TCP,ModBus RTU
Installation Wall type
Display Yes
Highest efficiency







Class A




Isolation methodNo isolation
Protection grade



Cooling wayAir cooling, intelligent fan speed control











All performance and parameters shall be subject to the latest confirmation of our technical department
