| Power: | 62.5kW | Efficiency: | ≥98.2% |
|---|---|---|---|
| Standby Power Consumption: | <120W | Wiring: | 3L+PE |
| Operating Temperature: | -25℃ ~ +55℃(Power Derating Above +45℃) | Protection Level: | IP20 |
| Size (W*H*D): | 435*135*650 | Relative Humidity: | 0~95%，No Condensation |
| Certification: | G99/CE/CQC | Communication Mode: | RS485、CAN、LAN |
| Noise: | ＜68dB | Weight: | 35kg |
| Output Harmonic: | 3%@ Linear Full Load | Dynamic Response: | 60ms@100% Linear Load |
| Unbalanced Load Capacity: | 100% | Overload Capacity: | Overload≤110%, Run ≥10min; Overload [110%~120%], Run ≥ 1min |
| High Light: | 62.5kW Bidirectional AC DC Converter,AC DC Converter CE G99,G99 High Voltage AC DC Converter |
||

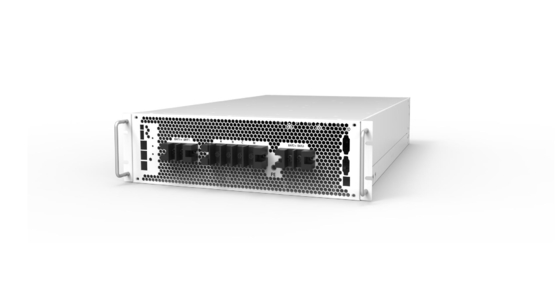

The 62.5KW group series energy storage converter is small in size and light in weight, and is suitable for grid-connected and off-grid applications. It can easily realize the parallel networking of multiple devices to form a small and medium-sized energy storage system, with strong adaptability of power grid and load. Excellent ease of use. A DC branch can be divided into a maximum of two branches for fine battery management
Features
Product specification
| Model |
NESI-62.5KR1-1P |
NESI-62.5KR1-2P | |
DC side parameters | Voltage range | DC600V～DC900V | |
| Rated power |
62.5kW | ||
| Maximum current |
116A | ||
| Number of DC channels | 1 | 2 | |
AC grid-connection parameters | Grid type |
3L+PE | |
| Rated power |
62.5kW | ||
| Rated voltage |
AC380V/400V | ||
| Rated current |
95A | ||
| Voltage range | -15%～+15% | ||
| Rated frequency |
50Hz/60Hz | ||
| Frequency range | Rated frequency±3Hz | ||
| Power factor |
-1~+1 | ||
| Output harmonic | ≤3% | ||
| wiring |
3L+PE | ||
| AC off-grid parameters | Rated power |
62.5kW |
| Rated voltage |
AC380V | |
| Rated frequency |
50Hz/60Hz | |
| Rated current |
95A | |
| Voltage accuracy |
1% | |
| Frequency accuracy |
0.2Hz | |
| Output harmonic | 3%@ linear full load | |
| Dynamic response | 60ms@100% Linear load | |
| Unbalanced load capacity |
100% | |
| Overload capacity | Overload≤110%, run ≥10min; Overload [110%~120%], run ≥ 1min | |
Environment | Working temperature | -25℃～55℃(Derating when temperature is above 45 °C) |
| Storage temperature | -40℃～70℃(No battery) | |
| Relative humidity | 0％RH～95％RH,No condensation | |
| Working altitude | When the temperature is 45 °C, derating is not required for 2000m. Derating ranges from 2000m to 4000m | |
| Noise | ＜68dB | |
Communications and Management | Communication interface | RS485,CAN,LAN |
| Communication protocol | CAN,ModBus TCP,ModBus RTU | |
| Installation | Rack type | |
| Highest efficiency |
98.2% | |
EMC |
Class A | |
| Isolation method | No isolation | |
| Protection grade |
IP20 | |
| Cooling way | Air cooling, intelligent fan speed control | |
| Size (W*H*D) |
435*135*650mm | |
| Weight |
35kg | |
All performance and parameters shall be subject to the latest confirmation of our technical department
About SINY
SINY NEW ENERGY CO., LTD is an innovative company focused on PCS product development, production and sales in the field of energy storage and energy Internet technology, and is committed to providing advanced energy storage technology application solutions for the power industry, industrial and commercial enterprises and new energy industry, helping users solve the core pain points of the industry and improving economic benefits for enterprises. XI'AN SINY ENERGY POWER CO., LTD was founded in 2015, as the R&D center of the company, located in Xi'an High-tech Industrial Development Zone.
