Product Details:
Payment & Shipping Terms:
|
| Rated Power: | 80kW | Rated Frequency: | 50Hz/60Hz |
|---|---|---|---|
| Rated Voltage: | AC380V | Voltage Range （DC+/-）: | DC50V~ DC950V |
| Current Range: | ±118A | Voltage Limiting: | Support |
| Current Limiting: | Support | Forward And Reverse Switching Time: | <10ms |
| Peak Efficiency: | ≥98.6% | Mean Time Between Failure (MTBF): | ＞100000 Hours |
| Operating Temperature: | -20℃～+45℃（above +50℃ Power Derating） | Working Humidity: | ≤95%RH，no Condensation |
| Storage Temperature: | -40℃～+55℃ | Altitude: | <3000m |
| Communication: | RS485，CAN, Ethernet, Dry Contact | Protection Level: | IP20 |
| Size (H*W*D): | 129*436*470mm |

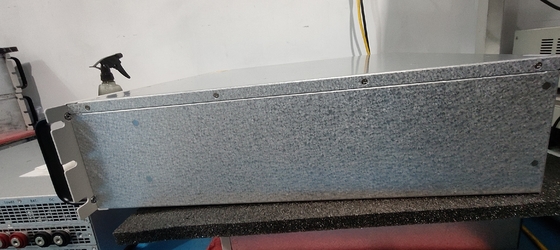

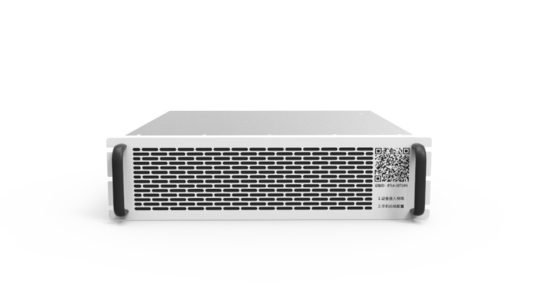

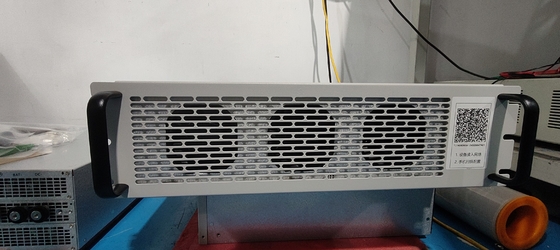

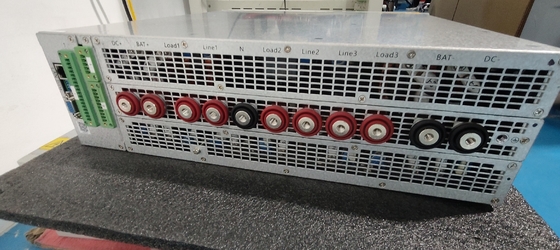

This 80kW AC/DC bidirectional energy storage converter adopts modular design, uses advanced control algorithm to realize multi-machine parallel, and the power level of the parallel system covers 80kW ~ 1MW. The module has both local monitoring and EMS system remote scheduling functions, with excellent load adaptability and power grid adaptability, while the independent air duct design makes it effectively cope with a variety of complex application environments, the system is safer, more reliable, economic, environmental adaptability.
Features
High efficiency
Safety
Convenient
Technical parameter
| Model | BTLA-PMA080-A011-HL |
| AC side parameters | |
| Wiring system | Three phase five wire system |
| Rated voltage | AC380V |
| Rated power | 80kW |
| Voltage range | AC380V±15% |
| Current range | ±123A |
| Rated frequency | 50Hz/60Hz |
| Frequency range | 50/60Hz±5Hz |
| Power factor adjustment range | ±1 |
| Harmonic content THDi | ≤3% |
| DC side parameters | |
| voltage range | DC680V~DC1000V |
| Current range | ±118A |
| Voltage error | ≤1% |
| Stabilized voltage precision | ≤1% |
| Current error | ≤1% |
| Stabilized current precision | ≤1% |
| Voltage limiting characteristic | Yes |
| Current limiting characteristic | Yes |
| Basic characteristics | |
| Off-grid/grid-connected switch | Built-in |
| AC and DC starting capability | Support |
| Forward and reverse switching time | <10ms |
| Peak efficiency | 98.6% |
| Overload capability | 1.1 times ≥ 10min, 1.2 times ≥ 1min |
| Off-grid/grid-connected switching time | <10ms |
| Operating temperature | -20℃～+45℃(above +45℃ power derating) |
| Working humidity | ≤95%RH,no condensation |
| storage temperature | -40℃～+55℃ |
| Storage humidity | 0 ~ 95%RH |
| Cooling method | Intelligent forced air cooling |
| Altitude | 3000m |
| Communication | RS485,CAN, Ethernet, Dry contact |
| Island protection | Support |
| Protective characteristic | Multiple safety protection, AC and DC over and under voltage protection, over current protection, short circuit protection, DC reverse protection, AC phase sequence protection, over temperature protection, fan abnormal detection, etc. |
| Protection level | IP20 |
| Noise | ＜70dB |
| Weight | 32kg |
| Size ( H*W*D ) 129*443*470mm | |
All performance and parameters shall be subject to the latest confirmation of our technical department.
