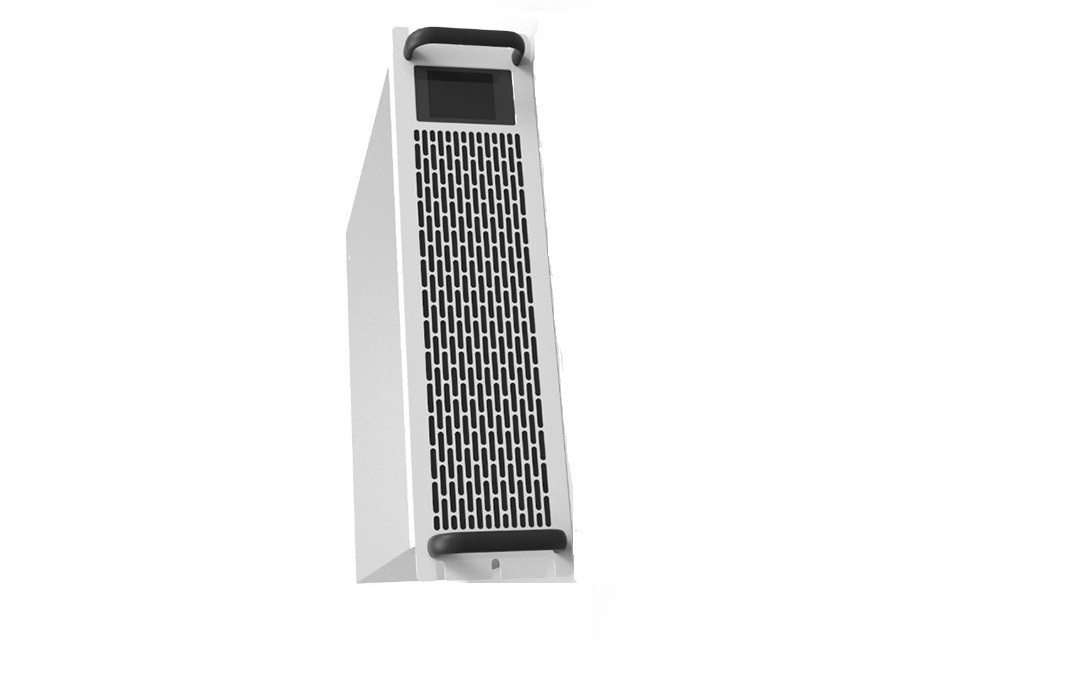

Grid Connected CQC AC DC 70 kW Converter 68dB Low Noise 600V-900V

70kW Bidirectional AC DC Converter Grid-connected Type for Micro Grid Energy Storage System

Features

• Wiith its own monitoring system, touch screen can beexternal, can be convenient to build a small energy storage system.
• DC voltage design:600V~900V
• Adaptable to a variety of grid voltages: AC380V/400V/415V.
• Three-level design,low harmonics.
• Small volume, less occupied space and convenient installation.
• Charge/discharge conversion less than 20ms.

Technical Parameters:

Model class MASI-70KR1

DC SIDE PARAMETERS

Voltage Range DC600V～DC900V DC Channel No. 1 Rated Current 110A Charging Management 3- stage charging

AC SIDE ON GRID PARAMETERS

Grid Type 3P+PE Rated Power 70kW Rated Voltage 380V Rated Current 106A Voltage Range -15%～+15% Rated Frequency 50Hz/60Hz 4 / 4 Frequency Range ±3Hz Power Ratio -1~+1 Output harmonic wave ≤3% ENVIREMENT Temperature -25℃～55℃(Over 45℃ derating ) Relatively humidity 0％RH～95％RH,Non-condensing Working attitude At 45 ℃, 2000m (without derating), 2000m ~ 4000m derating Noise ＜65dB Communication interface RS485,CAN,LAN Installation Type Rack Mounting Maximum Efficiency 98.5% EMC Class A Isolated Type Non-isolation Protection Grades IP20 Cooling Type Air cooling, intelligent fan speed regulation Size 435*135*700mm(W*H*D) Weight 35kg

Environment

Working temperature-25℃～55℃(≥45℃outputpowerreduction)

Storage temperature-40℃～70℃(nobattery)Relative humidity 0％RH～95％RH,no condensation

Working altitude 45℃时,2000m(noinfluence),2000m～4000m output power derating

Noise＜68dB

All performance and parameters shall be subject to the latest confirmation of our technical department

.
