Bidirectional Energy Storage Converter 62.5kW CQC 3L PE Wiring

Bidirectional Energy Storage Converter 62.5kW CQC 3L PE Wiring
Bidirectional Energy Storage Converter 62.5kW CQC 3L PE Wiring

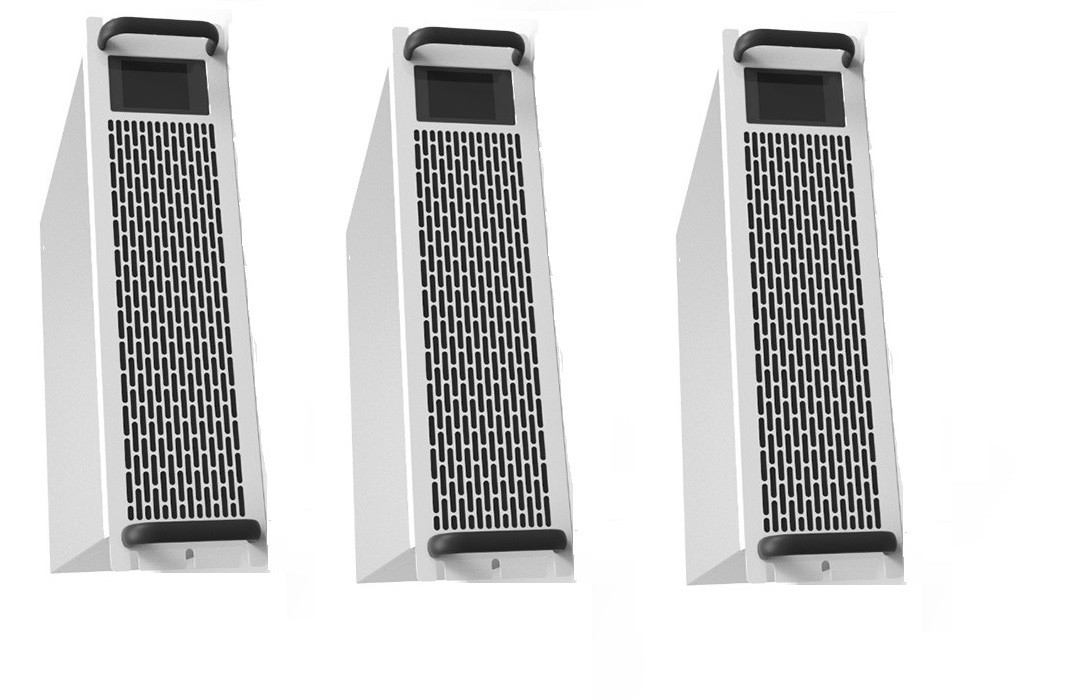

Large Image :  Bidirectional Energy Storage Converter 62.5kW CQC 3L PE Wiring

Product Details:
Place of Origin: CHINA
Brand Name: SINY
Certification: CE,G99
Model Number: NESI-62.5KR1-1P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Exwork: 5,000~9,000 USD
Packaging Details: Carton
Delivery Time: 45 Work days
Payment Terms: T/T,
Supply Ability: 200 Per month
Detailed Product Description
Power: 62.5kW Efficiency: ≥98.2%
Standby Power Consumption: <120W Wiring: 3L+PE
Operating Temperature: -25℃ ~ +55℃(Power Derating Above +45℃) Protection Level: IP20
Size (W*H*D): 435*135*650 Relative Humidity: 0~95%,No Condensation
Certification: G99/CE/CQC Communication Mode: RS485、CAN、LAN
Noise: <68dB Weight: 35kg
Output Harmonic: 3%@ Linear Full Load Dynamic Response: 60ms@100% Linear Load
Unbalanced Load Capacity: 100% Overload Capacity: Overload≤110%, Run ≥10min; Overload [110%~120%], Run ≥ 1min
High Light:

Bidirectional Energy Storage Converter

,

Energy Storage Converter 62.5kW

,

PE Wiring ac to ac converter

62.5kW AC DC Bidirectional Converter On-grid and Off-grid Type for Energy Storage System

With strong adaptability of power grid and load. Excellent ease of use. A DC branch can be divided into a maximum of two branches for fine battery management The 62.5KW small size and lightweight energy storage converter is suitable for both grid-connected and off-grid applications. It is easily for realizing parallel networking of multiple devices to form a small and medium-sized energy storage system. The DC side single stage voltage is 600 to 900V, and can be reach to 98.2% high efficiency. off grid available, strong load adaptability and our bidirectional converter is perfect for all types of load, which includes half wave load and impact load. Three level output, provide low harmonic and good power quality, 3U rack design, small size and easy to maintain.



Product specification


Model



NESI-62.5KR1-1P



NESI-62.5KR1-2P






DC side parameters

Voltage rangeDC600V~DC900V
Rated power



62.5kW

Maximum current



116A

Number of DC channels12












AC grid-connection parameters

Grid type



3L+PE

Rated power



62.5kW

Rated voltage



AC380V/400V

Rated current



95A

Voltage range-15%~+15%
Rated frequency



50Hz/60Hz

Frequency rangeRated frequency±3Hz
Power factor



-1~+1

Output harmonic≤3%
 wiring



3L+PE









AC off-grid parametersRated power



62.5kW

Rated voltage



AC380V

Rated frequency



50Hz/60Hz

Rated current



95A

Voltage accuracy



1%

Frequency accuracy



0.2Hz

Output harmonic3%@ linear full load
Dynamic response60ms@100% Linear load
Unbalanced load capacity



100%

Overload capacityOverload≤110%, run ≥10min; Overload [110%~120%], run ≥ 1min







Environment

Working temperature-25℃~55℃(Derating when temperature is above 45 °C)
Storage temperature-40℃~70℃(No battery)
Relative humidity0%RH~95%RH,No condensation
Working altitudeWhen the temperature is 45 °C, derating is not required for 2000m. Derating ranges from 2000m to 4000m
Noise<68dB



Communications and

Management

Communication interfaceRS485,CAN,LAN
Communication protocolCAN,ModBus TCP,ModBus RTU
InstallationRack type
Highest efficiency



98.2%



EMC



Class A

Isolation methodNo isolation
Protection grade



IP20

Cooling wayAir cooling, intelligent fan speed control
Size (W*H*D)



435*135*650mm

Weight



35kg


All performance and parameters shall be subject to the latest confirmation of our technical department

.
