60KW 100A AC DC Converter Module 60Hz AC DC Power Converter

60KW 100A AC DC Converter Module 60Hz AC DC Power Converter
60KW 100A AC DC Converter Module 60Hz AC DC Power Converter

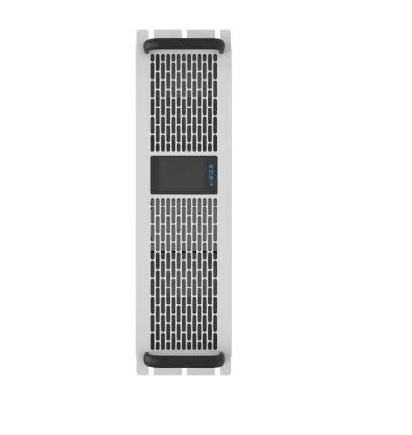

Large Image :  60KW 100A AC DC Converter Module 60Hz AC DC Power Converter

Product Details:
Place of Origin: China
Brand Name: ANE
Model Number: PMA060-A011-H
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: FOB: 2,000 USD~7,000 USD
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month
Detailed Product Description
Rated Power: 60kW Rated Frequency: 50Hz/60Hz
Rated Voltage: AC380V Voltage Range: AC380V±15%
Voltage Range (DC+/-): DC680V~ DC1000V Current Range: ±100A
Voltage Limiting: Support Current Limiting: Support
Forward And Reverse Switching Time: <10ms Efficiency: ≥97%
Mean Time Between Failure (MTBF): >100000 Hours Operating Temperature: -20℃~+45℃(above +50℃ Power Derating)
Working Humidity: ≤95%RH,no Condensation Storage Temperature: -40℃~+55℃
Cooling Method: Intelligent Forced Air Cooling Altitude: <3000m
Communication: RS485,CAN, Ethernet, Dry Contact Protection Level: IP20
Noise: <70dB Size (H*W*D): 129*436*470mm
High Light:

60KW 100A AC DC Converter Module

,

AC DC Converter Module 60Hz

,

60Hz AC DC Voltage Converter

60 KW Bidirectional AC DC Power Module For Microgrid and Energy storage System.

ANE 60kW module is a bidirectional AC-DC module specially developed for battery test equipment and microgrid and energy storage system, AC-DC analog power supply, feedback electronic load, electric vehicle charge-discharge equipment and energy storage equipment, which adopts the latest optimized hardware design, advanced control algorithm and advanced manufacturing process. Compatible with almost all energy storage equipment charging and discharging requirements. This module has the advantages of ultra-wide constant power range, excellent low-voltage constant current capability, high weighted efficiency in full power range, large limit temperature working range, and minimal standby power consumption, etc. The system operation is safer, more reliable, more economical and more adaptable to the environment.



Features


  • Modular design, easy to expand capacity;
  • Intelligent grid-connected operation, bidirectional high power factor, bidirectional low harmonic current, can effectively improve the quality of the power grid;
  • Set bidirectional DC power supply and feedback electronic load function characteristics in one, intelligent forward and backward operation, power and load seamless switch;
  • Touch screen operation control, simple and intuitive;
  • With off- grid/grid-connected switching function. High dynamic response, full load switching time as low as 10ms;
  • With islanding protection (settable), intelligent forward and backward operation to improve system reliability;
  • With multiple modes of constant voltage, constant current, constant resistance and constant power;
  • With output programmable function, can simulate a variety of power supply and load characteristic curve;
  • Wide output voltage range: 50Vdc ~ 950Vdc, high precision and fast dynamic response;
  • The intelligent DSP design realizes the full digital control of the energy storage converter module and determines the high reliability of the control;
  • Multiple safety protection, input over and under voltage protection, output anti-reverse connection protection, short circuit protection,over temperature protection, air duct abnormality detection, etc.




Technical parameter



All performance and parameters shall be subject to the latest confirmation of our technical department.

Model PMA060-A011-H
AC side parameters
Rated voltage AC380V
Rated power 60kW
Voltage range AC380V±15%
Current range ±92A
Rated frequency 50Hz/60Hz
Power factor adjustable range ±1
Harmonic content THDi ≤3%
DC side parameter
voltage range DC680V~DC1000V
Current range ±100A
Voltage error ≤1%
Stabilized voltage precision ≤1%
Current error ≤1%
Stabilized current precision ≤1%
Voltage limiting Support
Current limiting Support
Rated power 60kW
Basic characteristics
AC and DC starting capability Support
Forward and reverse switching time <10ms
Efficiency ≥97%
Overload capability 1.1 times ≥ 10min, 1.2 times ≥ 1min
Mean Time Between Failure (MTBF) >100000 hours
Operating temperature -20℃~+45℃(above +45℃ power derating)
Working humidity ≤95%RH,no condensation
storage temperature -40℃~+55℃
Storage humidity 0 ~ 95%RH
Cooling method Forced air cooling
Altitude 3000m
Communication RS485,CAN
Reactive power compensation Support
Protection level IP20
Noise <70dB
Weight 26kg
Size ( H*W*D ) 129*436*470mm
