Product Details:
Payment & Shipping Terms:
|
| AC Side Grid Connection Parameters: | AC Side Grid Connection Parameters | Rated Voltage: | AC380V |
|---|---|---|---|
| Rated Power: | 50kW | Maximum Power: | 55kW |
| Voltage Range: | AC380V±15% | Current Range: | ±73A |
| Rated Frequency: | 50Hz | Frequency Range: | 50Hz±5Hz/60Hz±5Hz |
| Power Factor Adjustable Range: | -0.99~0.99 | Current DC Component: | ≤0.5% |
| Harmonic Content THDi: | ≤5% | AC Side Off-grid Parameters: | AC Side Off-grid Parameters |
| Stabilized Voltage Precision: | ≤1% | Voltage Settable Range: | AC380V±15% |
| Power Factor: | >0.99 | Harmonic Content THDu: | ≤3% |
| Dynamic Response: | ≤60ms | Output Voltage DC Component: | ≤0.5% |
| Voltage Transition Range: | ≤5%，Load Changed From 20% To 100% | Unbalanced Load Capacity: | 100% |
| Three-phase Unbalance: | ≤2%，Short Time No More Than 4% | DC Side Parameter: | DC Side Parameter |
| Voltage Range: | DC730V~DC1050V | Voltage Error: | ≤1% |
| Current Error: | ≤1% | Stabilized Current Precision: | ≤1% |
| Voltage Limiting: | Support | Current Limiting: | Support |
| AC And DC Starting Capability: | Support | Forward And Reverse Switching Time: | <100ms |
| Efficiency: | ≥98.3% | Overload Capability: | 1.1 Times ≥ 10min, 1.2 Times ≥ 1min |
| Standby Power Consumption: | <30W | Mean Time Between Failure (MTBF): | ＞100000 Hours |
| Operating Temperature: | -25℃～+55℃（above +50℃ Power Derating） | Working Humidity: | ≤95%RH，no Condensation |
| Storage Temperature: | -40℃～+70℃ | Cooling Method: | Intelligent Forced Air Cooling |
| Altitude: | <2000m | Communication: | RS485，CAN |
| Reactive Power Compensation: | Support | Protection Level: | IP20 |
| Noise: | ＜75dB | Weight: | 23.5kg |
| Size (W*D*H) 430mm*500mm*130mm: | 430mm*500mm*130mm | ||
| High Light: | 50KW High Amp AC To DC Converter,High Amp AC To DC Converter 50Hz,50KW High Amp Energy Storage Converter |
||

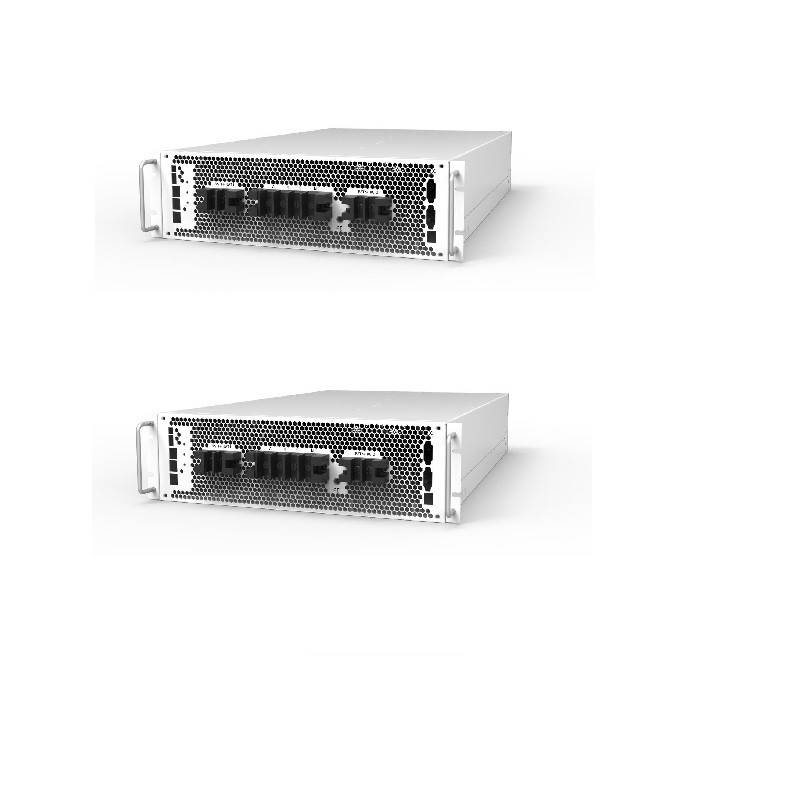

ANE 50kw energy storage converter module adopts modular design, with off-grid, grid-connected and rectifier modes, and can be intelligently switched between the three modes, and has reactive power compensation and harmonic compensation. The advanced control algorithm is used to realize parallel connection of multiple machines, and the power level of the parallel system covers 50kW-1000kW. The module adopts the new generation DSP digital control, with excellent load adaptability and power grid adaptability. Meanwhile, the independent air duct design enables the module to effectively cope with various complex application environments, making the system operation safer, more reliable and economic, and stronger environmental adaptability.
Technical Parameter
| Model | TIB3850M100NK | |
| AC side grid connection parameters | ||
| Rated voltage | AC380V | |
| Rated power | 50kW | |
| Maximum power | 55kW | |
| Voltage range | AC380V±15% | |
| Current range | ±76A | |
| Rated frequency | 50Hz/60Hz | |
| Frequency Range | 50Hz±5Hz/60Hz±5Hz | |
| Power factor adjustable range | -0.99~0.99 | |
| Current DC component | ≤0.5% | |
| Harmonic content THDi | ≤5% | |
| AC side off-grid parameters | ||
| Rated voltage | AC380V | |
| Rated frequency | 50Hz | |
| Stabilized voltage precision | ≤1% | |
| Voltage settable range | AC380V±15% | |
| Power factor | >0.99 | |
| Harmonic content THDu | ≤3% | |
| Dynamic Response | ≤60ms | |
| Output voltage DC component | ≤0.5% | |
| Voltage transition range | ≤5%,Load changed from 20% to 100% | |
| Unbalanced load capacity | 100% | |
| Three-phase unbalance | ≤2%,Short time no more than 4% | |
| DC side parameter | ||
| voltage range | DC730V~DC1050V | |
| Current range | ±73A | |
| Voltage error | ≤1% | |
| Stabilized voltage precision | ≤1% | |
| Current error | ≤1% | |
| Stabilized current precision | ≤1% | |
| Voltage limiting | Support | |
| Current limiting | Support | |
| Rated power | 50kW | |
| Maximum power | 55kW | |
| Basic characteristics | ||
| AC and DC starting capability | Support | |
| Forward and reverse switching time | <100ms | |
| Efficiency | ≥98.3% | |
| Overload capability | 1.1 times ≥ 10min, 1.2 times ≥ 1min | |
| Standby power consumption | <30W | |
| Mean Time Between Failure (MTBF) | ＞100000 hours | |
| Operating temperature | -25℃～+55℃(above +50℃ power derating) | |
| Working humidity | ≤95%RH,no condensation | |
| storage temperature | -40℃～+70℃ | |
| Storage humidity | 0 ~ 95%RH | |
| Cooling method | Intelligent forced air cooling | |
| Altitude | 2000m | |
| Communication | RS485,CAN | |
| Reactive power compensation | Support | |
| Protection level | IP20 | |
| Noise | ＜75dB | |
| Weight | 23.5kg | |
| Size (W*D*H) 430mm*500mm*130mm | ||
About Us:
SINY NEW ENERGY CO., LTD is an innovative company focused on PCS product development, production and sales in the field of energy storage and energy Internet technology, and is committed to providing advanced energy storage technology application solutions for the power industry, industrial and commercial enterprises and new energy industry, helping users solve the core pain points of the industry and improving economic benefits for enterprises. XI'AN SINY ENERGY POWER CO., LTD was founded in 2015, as the R&D center of the company, located in Xi'an High-tech Industrial Development Zone.
The company now has a high-quality elite team, 100% bachelor's degree or above, all from well-known enterprises in the energy industry, strong R & D strength, rigorous production and management, adhere to the development of the integration of production, education and research, has cooperated with a number of domestic research institutions and universities, and implemented joint training programs for postgraduates and doctoral students with Northwest Polytechnic University.It cooperates with Zhongke Chuangxing, an investment institution of the Chinese Academy of Sciences, and receives its strategic investment.
Contact Person: David Wang
Tel: +86 13359254960
