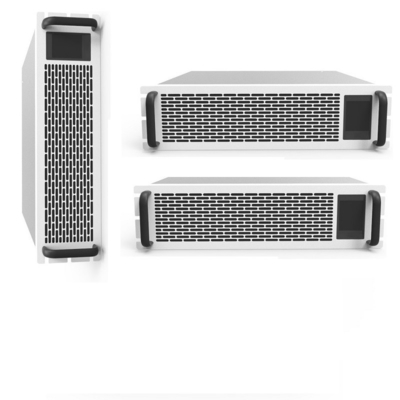

Micro Grid High Current AC To DC 30 kW Converter Three Phase Good Load Adaptability

Micro Grid High Current AC To DC 30 kW Converter Three Phase Good Load Adaptability
Micro Grid High Current AC To DC 30 kW Converter Three Phase Good Load Adaptability

Large Image :  Micro Grid High Current AC To DC 30 kW Converter Three Phase Good Load Adaptability

Product Details:
Place of Origin: China
Brand Name: ANE
Certification: CE,IEC 50549
Model Number: PMA030-A011-H
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: FOB: 800 USD~10,000 USD
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 20000 Per month
Detailed Product Description
AC And DC Starting Capability: Support Forward And Reverse Switching Time: <10ms
Efficiency: ≥97.2% Overload Capability: 1.1 Times ≥ 10min, 1.2 Times ≥ 1min
Standby Power Consumption: <30W Mean Time Between Failure (MTBF): >100000 Hours
Operating Temperature: -25℃~+55℃(above +50℃ Power Derating) Working Humidity: ≤95%RH,no Condensation
Storage Temperature: -40℃~+70℃ Cooling Method: Intelligent Forced Air Cooling
Altitude: <2000m Communication: RS485,CAN
Reactive Power Compensation: Support Protection Level: IP20
Noise: <75dB Weight: 23.5kg
Size (W*D*H) 430mm*500mm*130mm: 430mm*500mm*130mm
High Light:

Micro Grid High Current AC To DC Converter


AC To DC Converter Three Phase


Micro Grid Three Phase Converter

30 KW Bidirectional AC DC Converter Module For Micro-Grid System / Energy Storage System


  • High Efficiency up to 98.3%, greatly reducing the loss of the machine, energy saving and environmental protection, reliable and durable;
  • Advanced active power factor correction technology is used to reduce harmonic interference to the power grid, which is superior to industrial application standards;
  • With half - wave load capacity, three - phase with 100% unbalanced load, good load adaptability;
  • The module's external communication includes CAN, 485 and dry contacts, which seamlessly connect with external systems;
  • The module possesses multiple sampling interfaces externally, which can be coordinated with customer system or using the optional off-grid/on-grid switching module to realize the off-grid, grid-connected switching function.

ANE 30kw energy storage converter module adopts modular design, with off-grid, grid-connected and rectifier modes, and can be intelligently switched between the three modes, and has reactive power compensation and harmonic compensation. The advanced control algorithm is used to realize parallel connection of multiple machines, and the power level of the parallel system covers 50kW-1000kW. The module adopts the new generation DSP digital control, with excellent load adaptability and power grid adaptability. At the same time, the independent air duct design enables the module to effectively cope with various complex application environments, the system run more secure, reliable, economic and environmental adaptability is stronger.


Technical parameter

AC side grid connection parameters
Rated voltageAC380V
Rated power30kW
Maximum power33kW
Voltage rangeAC380V±15%
Current range±45A
Rated frequency50Hz
Frequency Range45Hz~55Hz
Power factor adjustable range-0.99~0.99
Current DC component≤0.5%
Harmonic content THDi≤5%
AC side off-grid parameters
Rated voltageAC380V
Rated frequency50Hz
Stabilized voltage precision≤1%
Voltage settable rangeAC380V±15%
Power factor>0.99
Harmonic content THDu≤3%
Dynamic Response≤60ms
Output voltage DC component≤0.5%
Voltage transition range≤1%,Load changed from 20% to 100%
Unbalanced load capacity100%
Three-phase unbalance≤2%,Short time no more than 4%
DC side parameter
voltage rangeDC50V~DC700V
Off-grid operating voltage rangeDC220V~ DC700V
Full load voltage rangeDC600V~DC700V
Current range±50A
Voltage error≤0.5%
Stabilized voltage precision≤0.5%
Current error0.3A@0-30A,±1%@30A-50A
Stabilized current precision≤1%
Voltage limitingSupport
Current limitingSupport
Ripple coefficient

The effective value does not exceed ±0.5%,
the peak-to-peak value does not exceed ±1%

Rated power30kW
Maximum power33kW
Basic characteristics
AC and DC starting capabilitySupport
Forward and reverse switching time<10ms
Overload capability1.1 times ≥ 10min, 1.2 times ≥ 1min
Standby power consumption<30W
Mean Time Between Failure (MTBF)>100000 hours
Operating temperature-25℃~+55℃(above +50℃ power derating)
Working humidity≤95%RH,no condensation
storage temperature-40℃~+70℃
Storage humidity0 ~ 95%RH
Cooling methodIntelligent forced air cooling
Reactive power compensationSupport
Protection levelIP20
Size (W*D*H) 430mm*500mm*130mm
