| Rated Power: | 30kW | Maximum Power: | 33kW |
|---|---|---|---|
| Rated Voltage: | AC380V | Voltage Range: | AC380V±15% |
| Voltage Range（BAT+/-）: | DC50V~DC950V | Voltage Range （DC+/-）: | DC680V~ DC1000V |
| Rated Voltage（BAT+/-）: | DC300V | Isolation Transformer: | Support |
| AC And DC Starting Capability: | Support | Forward And Reverse Switching Time: | <10ms |
| Efficiency: | ≥95% | Mean Time Between Failure (MTBF): | ＞100000 Hours |
| Operating Temperature: | -20℃～+45℃（above +50℃ Power Derating） | Working Humidity: | ≤95%RH，no Condensation |
| Storage Temperature: | -40℃～+55℃ | Cooling Method: | Intelligent Forced Air Cooling |
| Altitude: | <3000m | Communication: | RS485，CAN, Ethernet, Dry Contact |
| Protection Level: | IP20 | Noise: | ＜70dB |
| Size (H*W*D): | 129*436*470mm | ||
| High Light: | 380V AC DC Bidirectional Converter,AC DC Bidirectional Converter IP20,IP20 DC To AC Converter |
||
Product Description

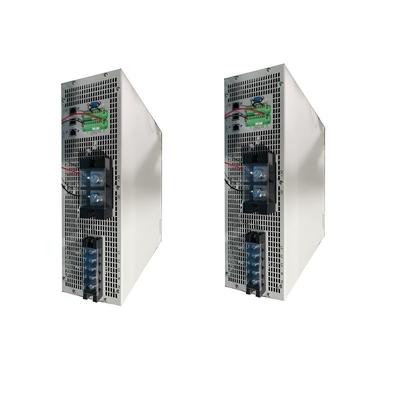

ANE 30kW module is a bidirectional AC-DC module specially developed for battery test equipment and microgrid and energy storage system, AC-DC analog power supply, feedback electronic load, electric vehicle charge-discharge equipment and energy storage equipment, which adopts the latest optimized hardware design, advanced control algorithm and advanced manufacturing process. Compatible with almost all energy storage equipment charging and discharging requirements. This module has the advantages of ultra-wide constant power range, excellent low-voltage constant current capability, high weighted efficiency in full power range, large limit temperature working range, and minimal standby power consumption, etc. The system operation is safer, more reliable, more economical and more adaptable to the environment.
Features
Off grid/grid-connected switching function, high dynamic response and full load switching time as low as 10ms, settable islanding protection, intelligent forward backward operation for improving system reliability. Multiple modes acceptable, constant volatage, current, resistance and power. With Output programmable function, the bidirectional power module can simulate a variety of power supply and load characteristic curve.
Also, It is easy to expand capacity with designable modular. Low harmonic current, high power factor, and intelligent grid connected operation can effectively improve the quality of the power grid.
Technical parameter
| Model | PMA030-A011-H | |
| AC side grid connection parameters | ||
| Rated voltage | AC380V | |
| Rated power | 30kW | |
| Maximum power | 33kW | |
| Voltage range | AC380V±15% | |
| Current range | ±45A | |
| Rated frequency | 50Hz/60Hz | |
| Power factor adjustable range | -0.99~0.99 | |
| Current DC component | ≤0.5% | |
| Harmonic content THDi | ≤3% | |
| AC side off-grid parameters | ||
| Rated voltage | AC380V | |
| Rated frequency | 50Hz/60Hz | |
| Stabilized voltage precision | ≤1% | |
| Voltage settable range | AC380V±15% | |
| Power factor | >0.99 | |
| Harmonic content THDu | ≤3% | |
| Output voltage DC component | ≤0.5% | |
| Voltage transition range | ≤1%,Load changed from 20% to 100% | |
| Unbalanced load capacity | 100% | |
| Three-phase unbalance | ≤2%,Short time no more than 4% | |
| DC side parameters | ||
| Voltage range(BAT+/-) | DC50V~DC950V | |
| Voltage range (DC+/-) | DC680V~ DC1000V | |
| Rated voltage(BAT+/-) | DC300V | |
| Rated current (BAT+/-) | 100A | |
| Current range | ±100A | |
| Voltage error | ±1% | |
| Current error | ±1% | |
| Voltage limiting | Support | |
| Current limiting | Support | |
| Rated power | 30kW | |
| Maximum power | 33kW | |
| Basic characteristics | ||
| AC and DC starting capability | Support | |
| Forward and reverse switching time | <10ms | |
| effectiveness | ≥95% | |
| Standby power consumption | <30W | |
| Mean Time Between Failure (MTBF) | ＞100000 hours | |
| Operating temperature | -20℃～+45℃(above +45℃ power derating) | |
| Working humidity | ≤95%RH,no condensation | |
| storage temperature | -40℃～+55℃ | |
| Storage humidity | 0 ~ 95%RH | |
| Cooling method | Forced air cooling | |
| Altitude | 3000m | |
| Communication | RS485,CAN, Ethernet: Dry contact. | |
| Protection level | IP20 | |
| Noise | ＜70dB | |
| Weight | 26kg | |
| Size (H*W*D) 129*436*470mm | ||
