| Isolation Transformer: | Support | AC And DC Starting Capability: | Support |
|---|---|---|---|
| Forward And Reverse Switching Time: | <10ms | Efficiency: | ≥93.5% |
| Overload Capability: | 1.1 Times ≥ 10min, 1.2 Times ≥ 1min | Mean Time Between Failure (MTBF): | ＞100000 Hours |
| Operating Temperature: | -20℃～+45℃（above +50℃ Power Derating） | Working Humidity: | ≤95%RH，no Condensation |
| Storage Temperature: | -40℃～+55℃ | Cooling Method: | Intelligent Forced Air Cooling |
| Altitude: | <3000m | Communication: | RS485，CAN, Ethernet, Dry Contact |
| Protection Level: | IP20 | Noise: | ＜70dB |
| Size (W*D*H) 430mm*500mm*130mm: | 436mm*420mm*85mm | ||
| High Light: | 15KW Isolated AC DC Converter,Isolated AC DC Converter 380VAC,15KW ac to dc transformer |
||

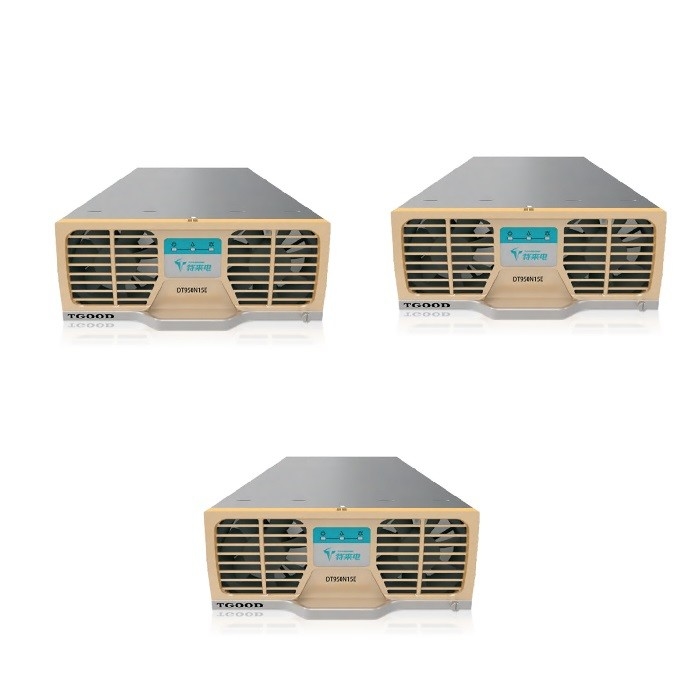

ANE 15kW module is a bidirectional AC-DC module specially developed for battery test equipment and microgrid and energy storage system, AC-DC analog power supply, feedback electronic load, electric vehicle charge-discharge equipment and energy storage equipment, which adopts the latest optimized hardware design, advanced control algorithm and advanced manufacturing process. Compatible with almost all energy storage equipment charging and discharging requirements. This module has the advantages of ultra-wide constant power range, excellent low-voltage constant current capability, high weighted efficiency in full power range, large limit temperature working range, and minimal standby power consumption, etc. The system operation is safer, more reliable, more economical and more adaptable to the environment.
Features
Intteligent Grid connected operation, bidirectional high power factor and low harmonic current can effectively improve the quality of the power grid. Combined power supply and feedback electronice load function, intelligent forwar and backward operation, power and load seamless switch, easily operating. Off grid/grid connected switching function, high dynamic responce, full load switching time as low as 10ms. Settable islanding protection, intelligent forward and backward operation can improve reliability of the system. And multiple modes such as constant voltage, constant current, resistance and power. Besides, our converter has wide output voltage range from 50vdc-950vdc, has high precision and fast
dynamic response.
Technical parameter
| Model | PMA015-A011-HI |
| Wiring | TN-S |
| Rated Voltage | 380Vac |
| Voltage range | 380Vac±15% |
| frequency range | 45～65Hz |
| PF | 0.99 |
| THDi | ≤3% |
| Rated frequency and range | 45～65Hz |
| THDi | ≤3% |
| AC/DC starting function | Support |
| Switching time forward and backward | ≤10ms |
| Peak Efficiency | ≥93.5% |
| Model | PMA015-A011-HI |
| Rated value | 300Vdc/50A |
| Rated power | 15kW |
| Current range | ±50A |
| Current accuracy | 0.1% F.S/0.05% F.S |
| Voltage range | 50～950Vdc |
| Voltage accuracy | 0.1% F.S/0.05% F.S |
| Operating temperature range | °C | -20℃~45℃ | |
|
Working humidity range |
%RH | <+95 | Relative humidity, non-condensing |
| Storage temperature | °C | -40 ~ +55 | |
| Storage Humidity | %RH | 0 ~ +95 | Relative humidity, non-condensing |
| Cooling mode | - |
Air Cooling |
|
| Altitude | m | 3000 | / |
| IP grade | - | IP20 | |
| Noise | - | ≤70dB |
| Communication mode | - | CAN,RS485,Ethernet,Dry Contact. | |
| Report the signal | - | Various protection signals, voltage and current signals. | |
| Receipt signal | - | On off signal. |
Intteligent Grid connected operation, bidirectional high power factor and low harmonic current can effectively improve the quality of the power grid. Combined power supply and feedback electronice load function, intelligent forwar and backward operation, power and load seamless switch, easily operating. Off grid/grid connected switching function, high dynamic responce, full load switching time as low as 10ms.
