10Vdc 450Vdc 18KW High Power AC To DC Converter 180A For Battery Testing Equipment

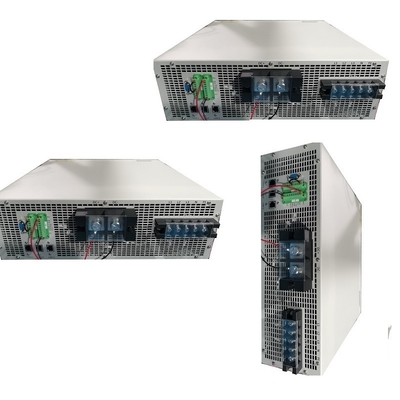

Large Image : 10Vdc 450Vdc 18KW High Power AC To DC Converter 180A For Battery Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	ANE
Model Number:	BTLA-MTS018-180M-01

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	FOB: 5,000 USD~7,000 USD
Packaging Details:	Carton
Delivery Time:	30 work days
Payment Terms:	T/T, L/C
Supply Ability:	20000 Per month

Contact Now

Detailed Product Description

Voltage Range:	10Vdc~450Vdc	Rated Current:	180A
Efficiency:	≥92%	Overload Capability:	1.1 Times ≥ 10min, 1.2 Times ≥ 1min
Mean Time Between Failure (MTBF):	＞100000 Hours	Working Humidity:	≤95%RH，no Condensation
Cooling Method:	Intelligent Forced Air Cooling	Altitude:	<3000m
Communication:	CAN，RS485，Ethernet，dry Contact	Protection Level:	IP20
Highlight:	18KW High Power AC To DC Converter , 450Vdc High Power AC To DC Converter , High Current AC To DC Converter 180A

DPS(18kW) 10Vdc-450Vdc High Frequency Isolated AC DC Bidirectional Converter Module For Battery Testing Equipment

The AC DC Bidirectional Converter has Two-way energy transfer, cross quadrant seamless switch, high output voltage range, high precision, fast dynamic response, High frequency isolation and higher safety. Using the latest optimized hardware design, advanced control algorithm and advanced manufacturing process, the HF isolated bidirectional power supply is specially developed for lithium battery testing equipment, AC and DC analog power supply, feedback electronic load, EV charging and discharging equipment and energy storage equipment.

Features

Multiple safety protection, input over-voltage/under-voltage protection, output anti-reverse connection, short circuit protection, over-temperature protection, abnormal detection of wind duct, etc;
Modular design, easy maintenance, support parallel capacity expansion;
Wide temperature -20℃～45℃;
Possesses intelligent forward and backward operation,seamless switching functions,meet the occasion of two-way energy transformation
High frequency isolation function, higher security
Equipped with on-grid/off-grid switching function, switching time is not more than 10ms

Technical parameter

AC side parameters

		BTLA-MTS018-180M-01
Rated Input Power		18kW
wiring		Three-phase five wire system
voltage range		380Vac±15%
Rated frequency and range	45～65Hz(Adaptive 50/60Hz power grid)
Power factor adjustment range	±1
THDi	≤5%

DC side parameters

		BTLA-MTS018-180M-01
Rated voltage		100Vdc
Rated current		180A
Voltage range		10Vdc-450Vdc
Current range		±180A
Voltage accuracy	0.1% F.S
Current accuracy	0.1% F.S
Voltage limiting	Yes
Current limiting	Yes

Basic Characteristics

	Description
AC/DC starting function	Yes
Switching time forward and backward	≤10ms
Peak efficiency	92%
HWD	131465510mm
Weight(kg)	26kg

Environmental Conditions

Operating Temperature Range	°C	-20℃~+45℃
Working humidity range	%RH	<+95	Relative humidity, non-condensing
Storage temperature	°C	-40 ~ +55
Storage humidity	%RH	0 ~ +95	Relative humidity, non-condensing
Cooling mode	-	Force-air cooling
Altitude	m	3000
Protection grade	-	IP20
Noise	dB	＜70

Communication

Communication mode	-	CAN,RS485,Ethernet,dry contact
Report signal	-	Various protection signals, voltage and current signals
Receipt signal	-	On off signal

Tag:

Contact Person: David Wang

Tel: +86 13359254960

Fax: 86--88699775
