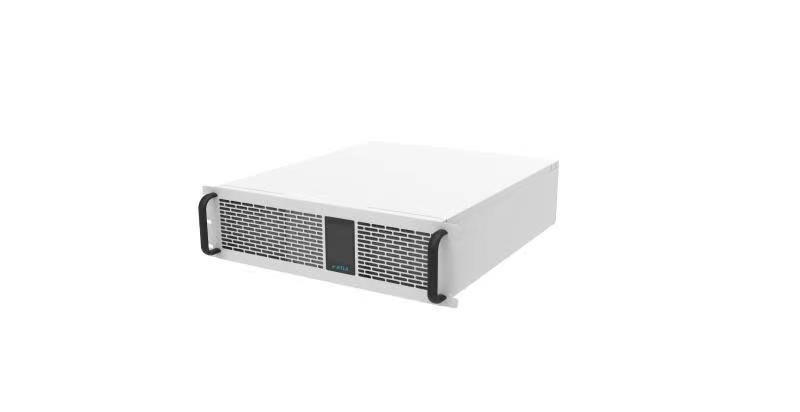

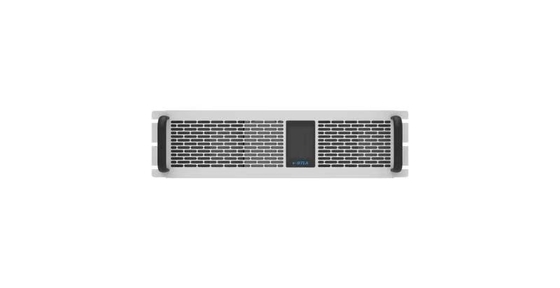

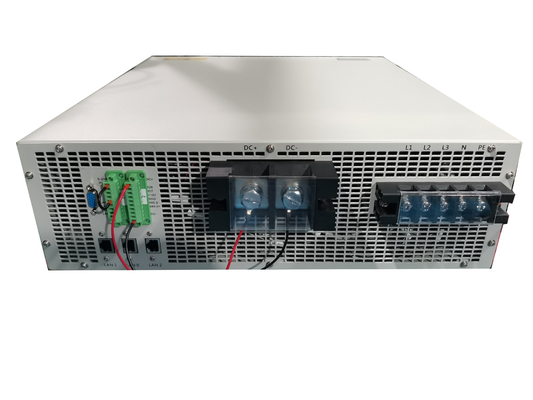

10Vdc-450Vdc 18KW AC To DC Converter 180A For Battery Testing Equipment

DPS(18kW) 10Vdc-450Vdc High Frequency Isolated AC DC Bidirectional Converter Module For Battery Testing Equipment

This convrter possesses intelligent forward and backward operation, seamless switching functions, can meet the occasion of two-way energy transformation, and has high frequency isolation function, higher security. At the same time, the product is equipped with on-grid/off-grid switching function, and the switching time is not more than 10ms, which can be applied in more occasions.Using the latest optimized hardware design, advanced control algorithm and advanced manufacturing process, the HF isolated bidirectional power supply is specially developed for lithium battery testing equipment, AC and DC analog power supply, feedback electronic load, EV charging and discharging equipment and energy storage equipment.

Features

• Two-way energy transfer, cross quadrant seamless switch;
• High output voltage range, high precision, fast dynamic response;
• High frequency isolation, higher safety;
• Multiple safety protection, input over-voltage/under-voltage protection, output anti-reverse connection, short circuit protection, over-temperature protection, abnormal detection of wind duct, etc;
• Modular design, easy maintenance, support parallel capacity expansion;
• Wide temperature -20℃～45℃;
• Equipped with on-grid/off-grid switching function;
• Soft switch design, low loss, high efficiency;
• DSP design, realize full digital control;
• Both local operation and remote operation functions;
• Rich external interface;
• Strict system thermal design, low temperature rise, long life;
• Touch screen operation control, simple and intuitive.

Technical parameter
