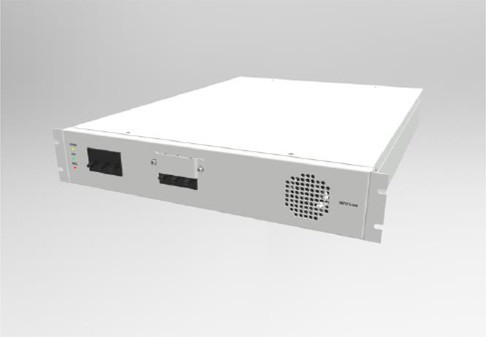

60KW STS Static Transfer Switch Grid Connected Off Grid STS Power Switch

60KW STS Static Transfer Switch Grid Connected Off Grid STS Power Switch
60KW STS Static Transfer Switch Grid Connected Off Grid STS Power Switch

Large Image :  60KW STS Static Transfer Switch Grid Connected Off Grid STS Power Switch

Product Details:
Place of Origin: China
Brand Name: SINY
Model Number: NESTS-60KR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Exwork: 2,000~4,000 USD
Packaging Details: Carton
Delivery Time: 45 Work days
Payment Terms: T/T,
Supply Ability: 200 Per month
Detailed Product Description
Rated Power: 60kW Rated Grid Voltage: 380V/400V
Maximum Current: 100A Long Term Overload Capacity: 110%
Rated Frequency: 50Hz/60Hz Switching Time Between On-grid And Off-grid: Transfer From On-grid To Off-grid≤20ms; Off-grid To Grid-connected 0ms
Size(W*H*D,mm): 435*90*600
High Light:

60KW STS Static Transfer Switch

,

Grid Connected STS Power Switch

,

60KW STS transfer switch

60 KW STS Grid-connected and Off-grid Switching Device for Energy Storage System



The NESTS grid-connected and off-grid switching device can realize the fast and automatic switching of the energy storage system in the grid-connected and off-grid operating states, which is suitable for the application scenarios with power guarantee requirements.



 Product features

  • Modular design, suitable for NESI series energy storage converter /SINY series optical storage integrated machine.
  • It can realize fast switching between the grid-connected and off-grid state within 20ms, and can effectively protect important information loads such as servers.
  • Cooperate with EMS and PCS to realize automatic operation of energy storage station without duty.
  • Each module is only 2U in height, small in size and high in power.
  • Product specification
型号 NESTS-60KR
  Rated power 60kW
  Rated grid voltage 380V/400V
  Input voltage range -15%~+15%
  Output voltage range -15%~+15%
  Maximum current 100A
  Long term overload capacity 110%
  Rated frequency 50Hz/60Hz
  Switching time between on-grid and off-grid

Transfer from on-grid to off-grid≤20ms;

Off-grid to grid-connected 0ms

  Maximum efficiency of the machine 99.5%
  Cooling way Forced air cooling
  Installation Rack
  Noise 45dB
  Temperature range -25℃~55℃(Derating above 45 ° C)
  Protection grade IP20
  Humidity range 0~95%
  Communication methods RS485,CAN
  Size(W*H*D,mm)
